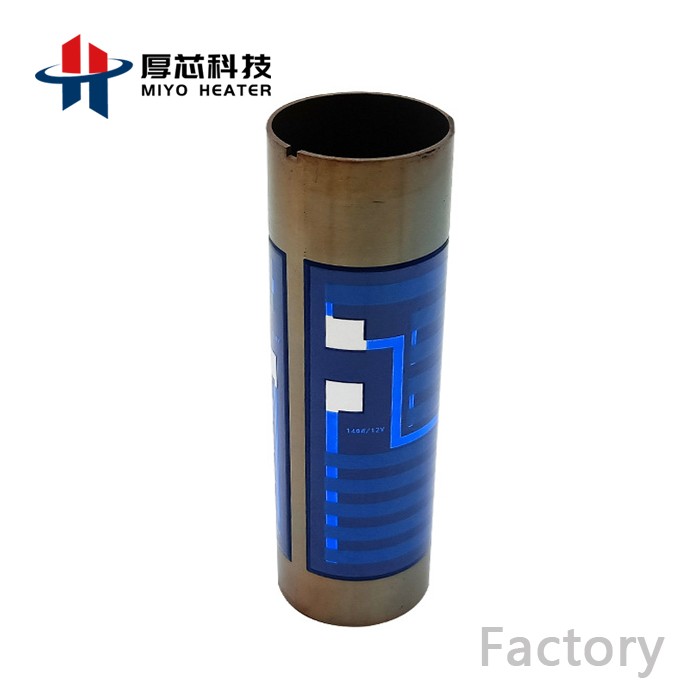

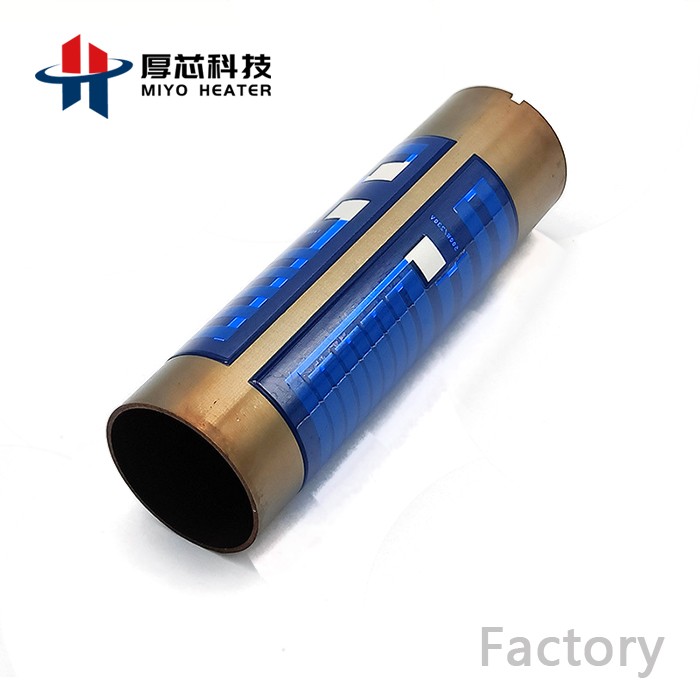

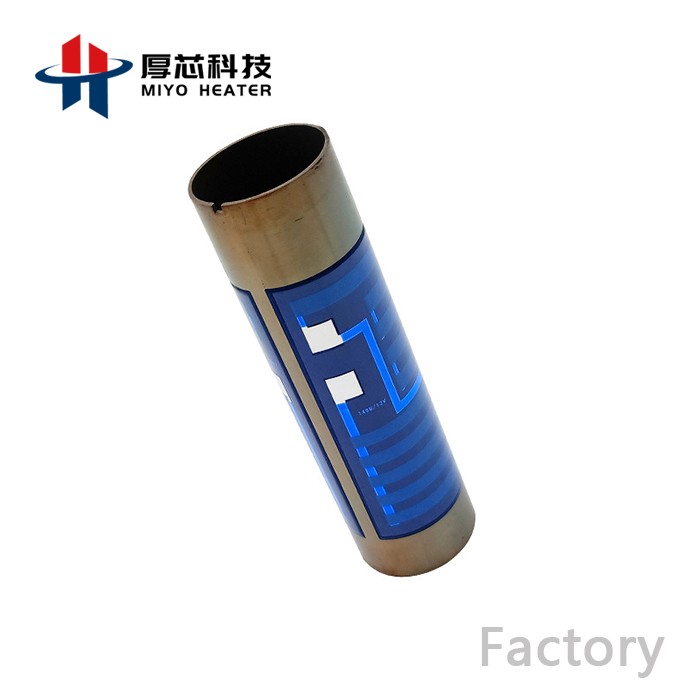

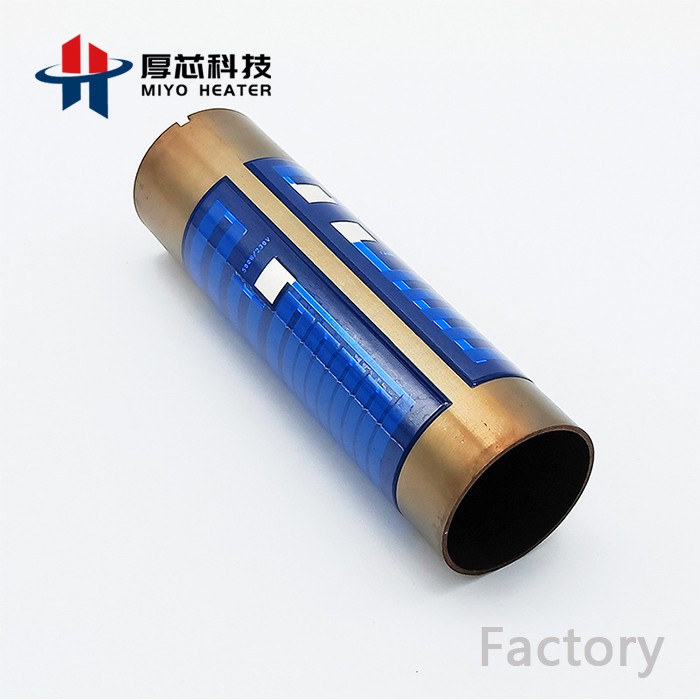

thick film tube heater

Specifications of Thick Film Instant Heater

1.Power: 90W

2.Voltage: 24V

3.Material: stainless steel 444

4.Heating tube size: 22*85mm*1.2mm(thickness), can be customized.

5. Ramp-Up Rate: 90℃/s

6.Dielectric Strength:1,500V/5mA/60s

7.Leakage Current:≤0.25mA

8.Tube Thickness:1.2mm

Compared with ordinary  heating elements, this thick film fast heater has the following advantages.

1. Large heating area (tubular structure)

2. Higher power density (60W/cm²)

3. Faster temperature response (up to 90℃/S)

4. Longer service life (>10000 hours)

5. Better heat transfer (≥97%).
